Description
This bolt is found on other models & in different locations. I’m focused on the TRX90 in this listing.

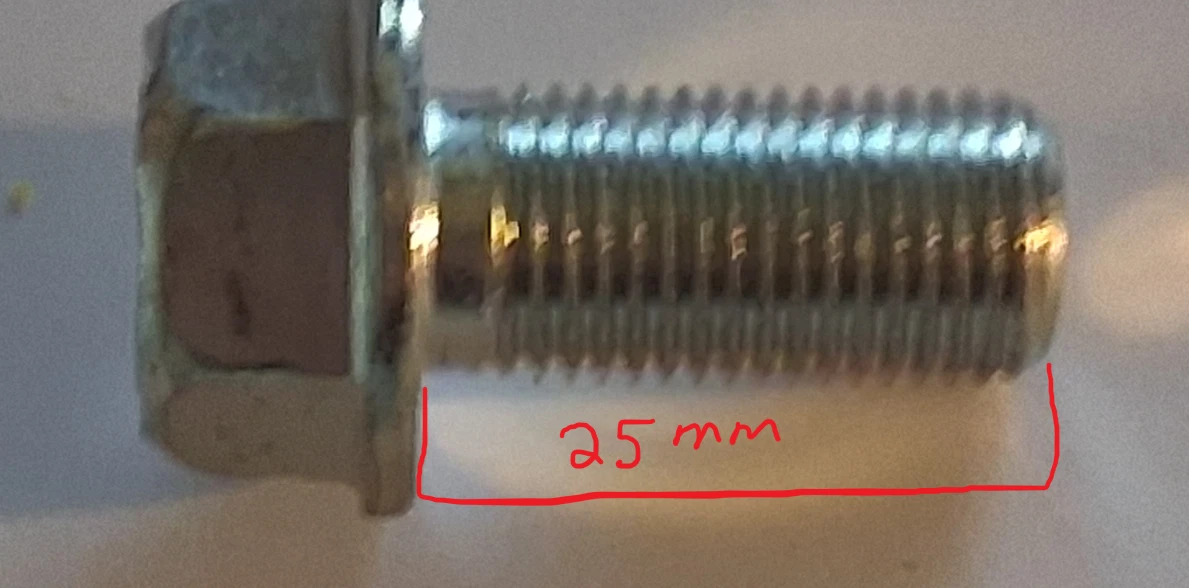

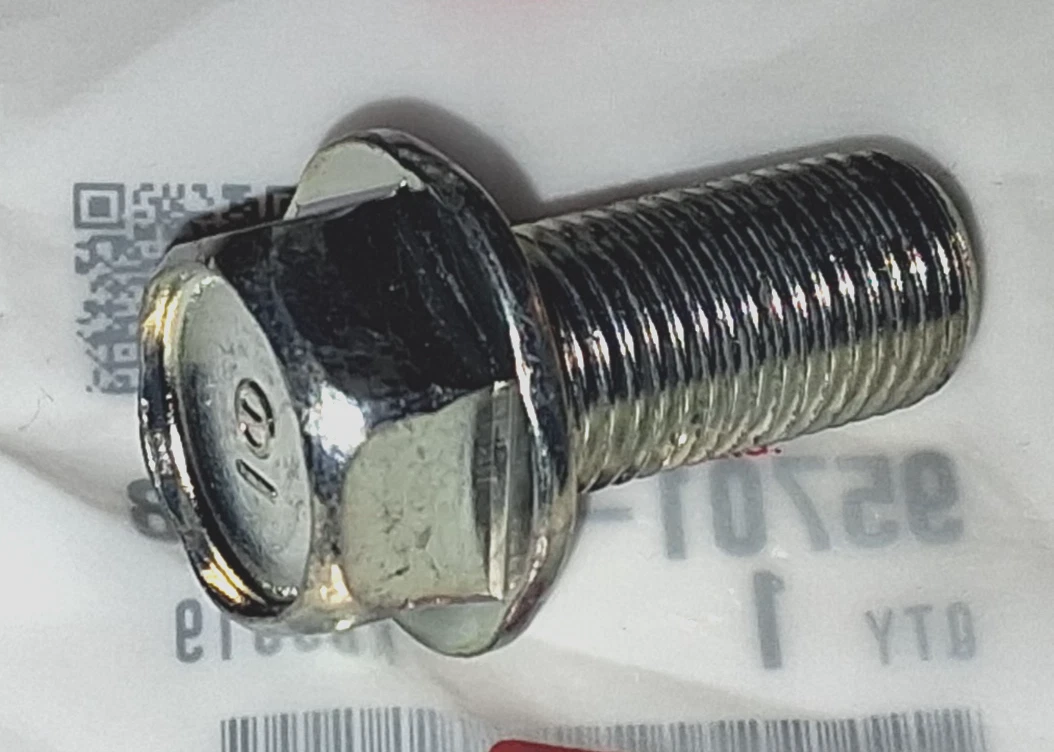

New, original Honda rear axle carrier mounting bolt for the following models.
- 1985 TRX125A FOURTRAX 125 (VIN# JH3TE050-FC000005 To JH3TE050-FC046927) – Frame
- 1986 ATC125MA ALL TERRAIN CYCLE (VIN# JH3TE010-GK200032 To JH3TE010-GK208552) – Rear Brake Drum
- 1986 TRX125A FOURTRAX 125 (VIN# JH3TE050-GC100001~) – Frame
- 1986 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-GK000030 To JH3TE030-GK064061) – Rear Brake Drum
- 1987 ATC125MA ALL TERRAIN CYCLE (VIN# JH3TE010-HK300004~) – Rear Brake Drum
- 1987 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-HK100004 To JH3TE030-HK109673) – Rear Brake Drum
- 1988 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-JK200003~) – Rear Brake Drum
- 1985 TRX125A FOURTRAX 125 (VIN# JH3TE050-FC000005 To JH3TE050-FC046927) – Frame
- 1986 ATC125MA ALL TERRAIN CYCLE (VIN# JH3TE010-GK200032 To JH3TE010-GK208552) – Rear Brake Drum
- 1986 TRX125A FOURTRAX 125 (VIN# JH3TE050-GC100001~) – Frame
- 1986 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-GK000030 To JH3TE030-GK064061) – Rear Brake Drum
- 1987 ATC125MA ALL TERRAIN CYCLE (VIN# JH3TE010-HK300004~) – Rear Brake Drum
- 1987 TRX125A FOURTRAX 125 (VIN# JH3TE050-HK200019 To JH3TE050-HK230880) – Frame
- 1987 TRX125A FOURTRAX 125 (VIN# JH3TE050-HK200019 To JH3TE050-HK230880) – Rear Brake Drum
- 1987 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-HK100004 To JH3TE030-HK109673) – Rear Brake Drum
- 1988 TRX125A FOURTRAX 125 (VIN# JH3TE050-JK300001~) – Frame
- 1988 TRX125A FOURTRAX 125 (VIN# JH3TE050-JK300001~) – Rear Brake Drum
- 1988 TRX200SXA FOURTRAX 200SX (VIN# JH3TE030-JK200003~) – Rear Brake Drum
- 1990 TRX200A FOURTRAX 200 (VIN# 478TE170-LA000001 To 478TE170-LA000597) – Rear Brake Drum
- 1991 TRX200A FOURTRAX 200 (VIN# 478TE170-MA100001~) – Rear Brake Drum
- 1991 TRX200AN FOURTRAX 200 (VIN# 478TE173-MA100001~) – Rear Brake Drum
- 1991 TRX200DA FOURTRAX 200 TYPE II (VIN# 478TE174-MA100001 To 478TE174-MA104825) – Rear Brake Drum
- 1991 TRX200DAN FOURTRAX 200 TYPE II (VIN# 478TE177-MA100001 To 478TE177-MA100040) – Rear Brake Drum
- 1992 TRX200DA FOURTRAX 200 TYPE II (VIN# 478TE174-NA200001~) – Rear Brake Drum
- 1992 TRX200DAN FOURTRAX 200 TYPE II (VIN# 478TE177-NA200001~) – Rear Brake Drum
- 1993 TRX200DA FOURTRAX 200 TYPE II (VIN# 478TE170-PA300001~) – Rear Brake Drum
- 1993 TRX200DAN FOURTRAX 200 TYPE II (VIN# 478TE173-PA300001~) – Rear Brake Drum
- 1993 TRX90A (VIN# JH3TE180-PT000001 To JH3TE180-PT007084) – Rear Brake Drum
- 1994 TRX200DA FOURTRAX 200 TYPE II (VIN# 1HFTE170-RA400001~) – Rear Brake Drum
- 1994 TRX200DAN FOURTRAX 200 TYPE II (VIN# 1HFTE173-RA400001~) – Rear Brake Drum
- 1994 TRX90A (VIN# JH3TE180-RT100001 To JH3TE180-RT102038) – Rear Brake Drum
- 1995 TRX200DA FOURTRAX 200 TYPE II (VIN# 1HFTE170-SA500001~) – Rear Brake Drum
- 1995 TRX200DAN FOURTRAX 200 TYPE II (VIN# 1HFTE173-SA500001~) – Rear Brake Drum
- 1995 TRX90A (VIN# JH3TE180-ST200001 To JH3TE180-ST201512) – Rear Brake Drum
- 1996 TRX200DA FOURTRAX 200 TYPE II (VIN# 1HFTE170-TA600001~) – Rear Brake Drum
- 1996 TRX200DAN FOURTRAX 200 TYPE II (VIN# 1HFTE173-TA600001~) – Rear Brake Drum
- 1996 TRX90A (VIN# JH3TE180-TK100001 To JH3TE180-TK102579) – Rear Brake Drum
- 1997 TRX200DA FOURTRAX 200 TYPE II (VIN# 1HFTE170-VA700001~) – Rear Brake Drum
- 1997 TRX200DAN FOURTRAX 200 TYPE II (VIN# 1HFTE173-VA700001~) – Rear Brake Drum
- 1997 TRX90A (VIN# JH3TE180-VK200001 To JH3TE180-VK203516) – Rear Brake Drum
- 1998 TRX90A (VIN# JH3TE180-WK300001 To JH3TE180-WK303908) – Rear Brake Drum
- 1999 TRX90A (VIN# JH3TE180-XK400001~) – Rear Brake Drum
- 2000 TRX90A FOURTRAX 90 (VIN# JH3TE180-YK500001~) – Rear Brake Drum
- 2001 TRX90A FOURTRAX 90 (VIN# JH3TE180-1K600001 To JH3TE180-1K699999) – Rear Brake Drum
- 2002 TRX90A SPORTRAX 90 (VIN# JH3TE180-2K700001 To JH3TE180-2K799999) – Rear Brake Drum
- 2003 TRX90A SPORTRAX 90 (VIN# JH3TE180-3K800001 To JH3TE180-3K899999) – Rear Brake Drum
- 2004 TRX90A SPORTRAX 90 (VIN# JH3TE180-4K900001 To JH3TE180-4K999999) – Rear Brake Drum
- 2005 TRX90A SPORTRAX 90 (VIN# JH2TE180-5K000001~) – Rear Brake Drum
- 2006 TRX90AC (VIN# JH2TE181-6K000001 To JH2TE181-6K099999) – Rear Brake Panel
- 2007 TRX90EX3AC (VIN# JH2TE185-7K000001 To JH2TE185-7K099999) – Rear Brake Panel
- 2007 TRX90EXAC (VIN# JH2TE181-7K100001 To JH2TE181-7K199999) – Rear Brake Panel
- 2008 TRX90EXA (VIN# JH2TE180-8K200001 To JH2TE180-8K299999) – Rear Brake Panel
- 2009 TRX90XA (VIN# JH2TE180-9K300001 To JH2TE180-9K399991) – Rear Brake Panel
- 2012 TRX90XA (VIN# JH2TE180-CK400001 To JH2TE180-CK499999) – Rear Brake Panel
- 2013 TRX90XAC (VIN# JH2TE181-DK200001 To JH2TE181-DK299999) – Rear Brake Panel
- 2014 TRX90XAC (VIN# JH2TE181-EK300001~) – Rear Brake Panel
- 2015 TRX90XAC (VIN# JH2TE181-FK400001 To JH2TE181-FK499999) – Rear Brake Panel
- 2016 TRX90XAC (VIN# JH2TE181-GK500001 To JH2TE181-GK599999) – Rear Brake Panel
- 2017 TRX90XAC (VIN# JH2TE181-HK600001 To JH2TE181-HK699999) – Rear Brake Panel
- 2018 TRX90XA (VIN# JH2TE180-JK500001 To JH2TE180-JK599999) – Rear Brake Panel
- 2018 TRX90XAC (VIN# JH2TE181-JK700001 To JH2TE181-JK799999) – Rear Brake Panel
- 2019 TRX90XAC (VIN# JH2TE183-KK000001 To JH2TE183-KK099999) – Rear Brake Panel
- 2020 TRX90XAC (VIN# JH2TE183-LK100001 To JH2TE183-LK199999) – Rear Brake Panel
- 2021 TRX90XAC (VIN# JH2TE183-MK200001 To JH2TE183-MK299999) – Rear Brake Panel
- 2022 TRX90XAC (VIN# 1HFTE550-N4000001~) – Rear Brake Panel
- 2023 TRX90XAC (VIN# 1HFTE550-P4100001 To 1HFTE550-P4199999) – Rear Brake Panel
- 2024 TRX90X4AC (VIN# 1HFTE550-RJ100001 To 1HFTE550-RJ199999) – Rear Brake Panel
- 2025 TRX90XAC (VIN# 1HFTE550-SJ100001 To 1HFTE550-SJ199999) – Rear Brake Panel
- The TRX90 takes 4 of these bolts on the axle carrier.
